66 Series Polyurethane on Polyolefin Casters (Top Plate)

Select your Size and Caster Style from the dropdowns above.

Polyurethane on polyolefin wheels provide smooth rolling with a quieter tread and better floor protection than hard wheels. Great for carts, racks, shop equipment, and general material-handling.

Size & Capacity (per caster)

• 4” x 2” — 500 lb — Overall height: 5-5/8”
• 5” x 2” — 600 lb — Overall height: 6-1/2”
• 6” x 2” — 720 lb — Overall height: 7-1/2”
• 8” x 2” — 800 lb — Overall height: 9-1/2”

Standard Specs (all sizes)

• Top plate: 4” x 4-1/2”
• Bolt pattern: 2-5/8” x 3-5/8” (fits up to 3” x 3”)
• Wheel material: Polyurethane on Polyolefin
• Bearing: Roller Bearing (Code 02)

Options

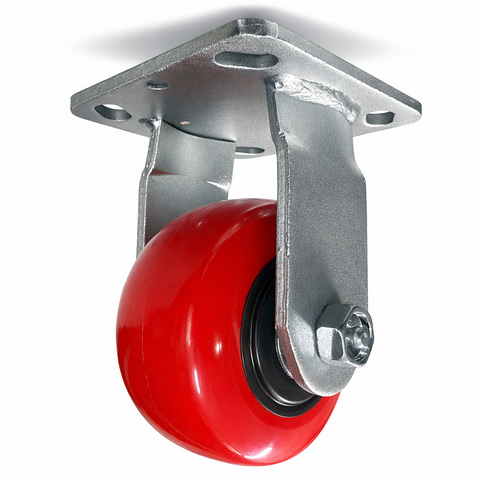

• Caster Type: Swivel or Rigid (Rigid = no brake)

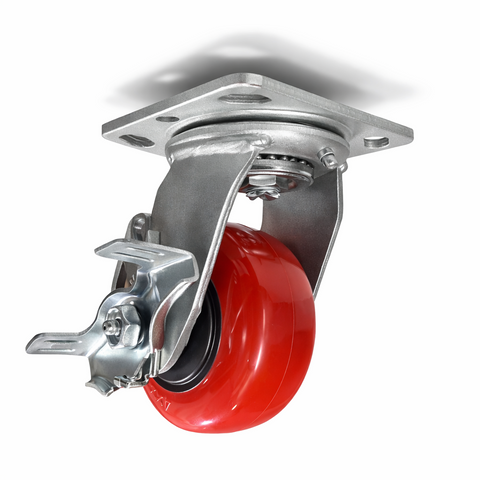

• Brake Option: Top Lock Brake (TLB) available on Swivel only

Notes

Capacity rating is per caster. Actual performance can vary based on floor condition, load distribution, and speed.

Call: 818-252-0878 • Text: 818-645-1693
